A powder coating plant is an industrial installation designed for applying a dry powder coating to metal or other conductive surfaces, followed by curing to form a hard, durable, and decorative finish. It is widely used in industries such as automotive, furniture, appliances, architecture, and general metal fabrication due to its eco-friendliness, high efficiency, and superior coating quality compared to traditional liquid painting.
A powder coating plant consists of a sequence of operations that prepare, coat, and cure components. The process converts bare metal workpieces into finished, corrosion-resistant, and aesthetically appealing products.
Main Sections of a Powder Coating Plant
Pre-Treatment Section
- Purpose: To clean and prepare the surface for coating by removing oil, dust, rust, and contaminants.
- Process Types:
- Chemical Pretreatment (Spray or Dip): Degreasing, phosphating, rinsing, and passivation.
- Mechanical Pretreatment: Sandblasting or shot blasting.
- Equipment:
- Pre-treatment tanks or spray tunnels
- Drying oven or hot air blower

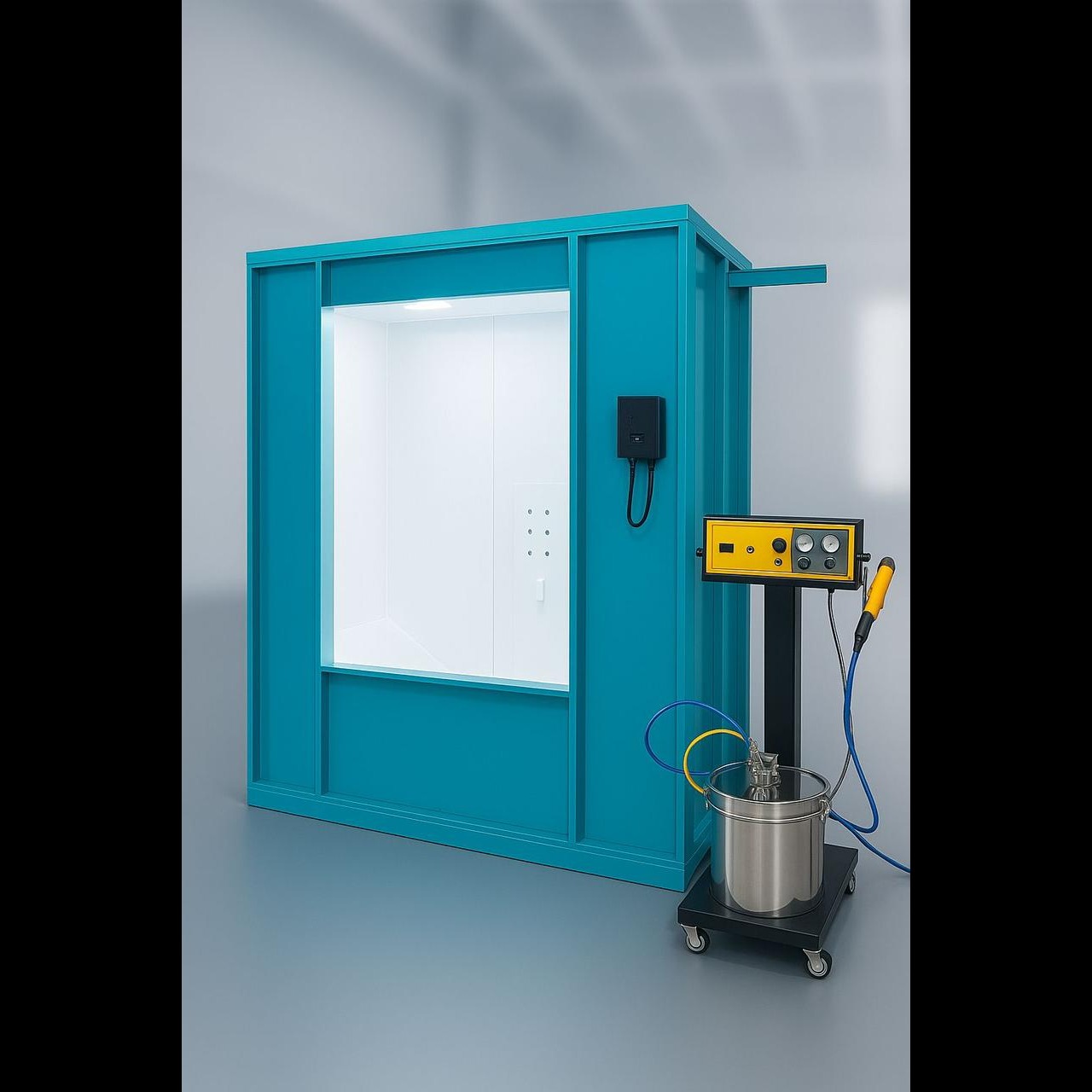

Powder Application Booth
- Purpose: To apply powder particles evenly on the pretreated surface.
- Process: Electrostatic guns charge the powder, which adheres to the grounded workpiece.
- Equipment:
- Powder spray booth (with recovery system).
- Electrostatic spray guns and control units.
- Powder feed and reclaim system (for unused powder).
Curing Oven
- Purpose: To melt and fuse the powder into a continuous film.
- Operation:
- Components are heated typically between 160°C to 200°C (320°F to 390°F) for 10–30 minutes, depending on the powder type.
- Types: Gas-fired, electric, or infrared curing ovens
- Control: Temperature and time are carefully regulated for uniform curing.
Material Handling System
- Purpose: To move parts smoothly through each stage of the process.
- Types:
- Overhead conveyor system (continuous)
- Batch trolley system (for small-scale plants)
Control & Safety Systems
- PLC or manual control panels for operation
- Safety interlocks for high-voltage and high-temperature zones
- Exhaust and filtration systems to maintain air quality
